EASY CHRYSLER 354-392 HEMI IDENTIFCATION
CAMSHAFTS
Early   early hemi 354 - 392 1956 - 1958 camshafts

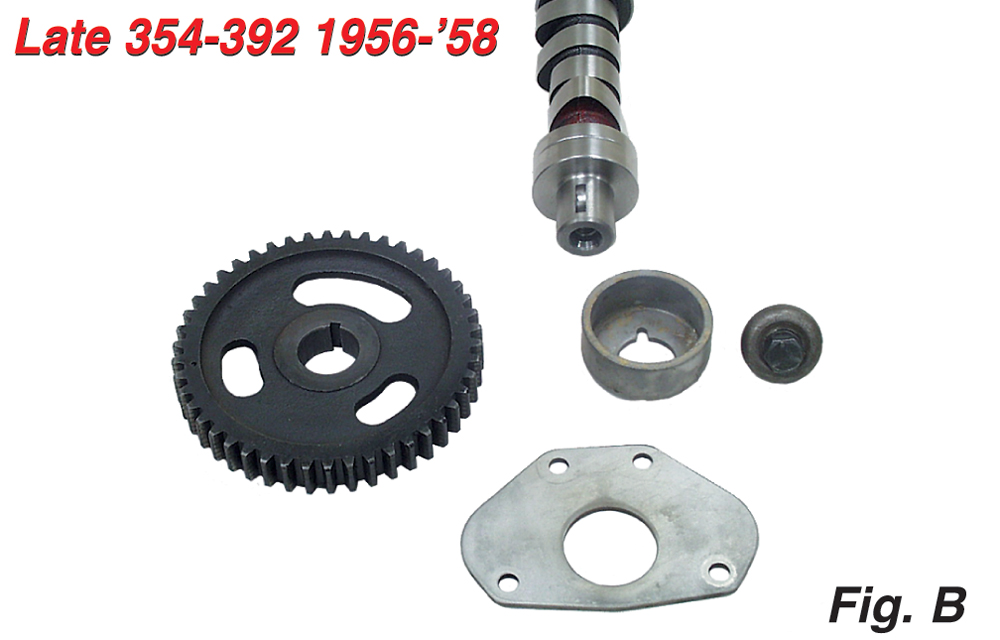

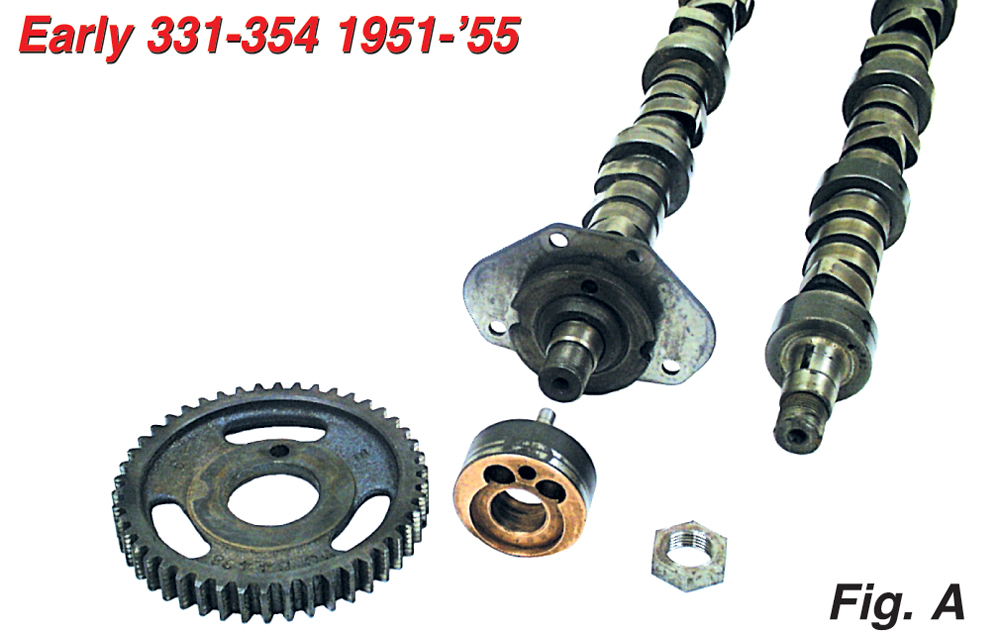

Early 331-354 camshafts have threaded snout and large cast fuel pump eccentric (see Fig. A). Early blocks will accept later style cams provided all the correct retaining hardware is used (see Fig. B), i.e. PAW camshaft retainer plate kit #5270.
CRANKSHAFTS
 BEWARE INDUSTRIAL CRANKSHAFTS DO NOT HAVE PROVISION FOR TIMING GEAR.

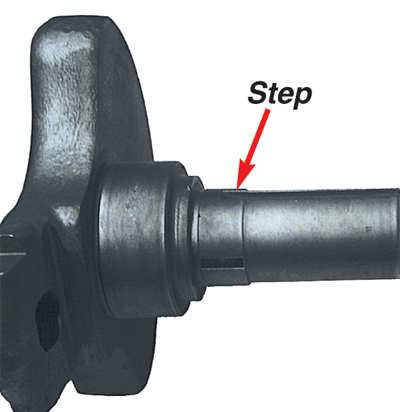

CASTING # The snout is straight if the engine has 2-piece gear drive. Check it out. Timing gear surface needs a step.
hemi crank
331 1323335-1335001
  1409421-1419421
354 1491421-1523335
  1617184-1619647
392 1673755

EARLY CHRYSLER HEMI DATA
SIZE
301
1955
331
1951-1955
'51-'53 Built-In
Bell Housing
354
1956-1958
392
1957-1958
BORE x STROKE
3.630 x 3.630
3.813 x 3.625
3.9375 x 3.625
4.000 x 3.910
RODS
LENGTH
FORGING'S #s
6.625
1324222 - 1821345
6.625
1324222 - 1821345
6.625
1324222 - 1821345
6.956
1673758
MAIN JOURNAL
ROD JOURNALS
2.500
2.250
2.500
2.250
2.500
2.250
2.687
2.375
PUSHRODS
INT
EX
9.625
11.125
9.625
11.125
9.625
11.125
10.125
11.550

HEMI Tech Page 1 Heads, Engine Blocks and Oil Pans
